Year Built | 10/2018 |
Power-on hours | |
Spindel hours | |
Price New | 126.000 € |
Location | Eastern Belgium |
Expected Price | Please contact us |
Work capacity | |
Max. Swing (Over Apron) | 806 mm |
Max. Diameter | 457 mm |
Max. Length | 584 mm |
Length between Centers | 762 mm |
Max. Bar Capacity | 76 mm |

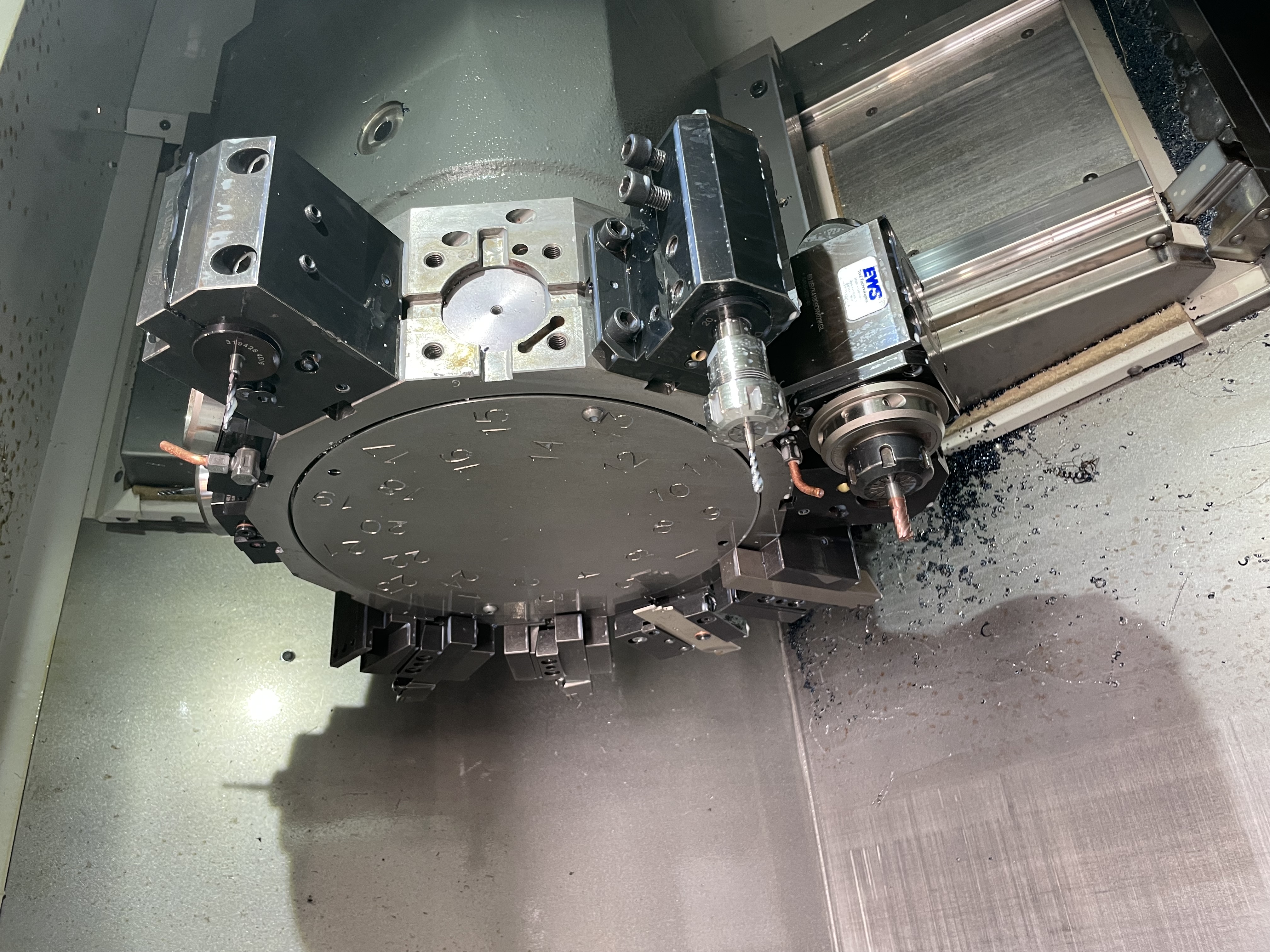

Turret | |
N° of tools | 12 |
X-axis | 318 mm |
Y-axis | +/- 50,8 mm |
Z-axis | 584 mm |
Rapid traverse rate | |
X-axis | 12 m/min |
Y-axis | 12 m/min |
Z-axis | 24 m/min |
Spindle | |
Spindle Speed | 4.500 RPM |
Main Spindle motor | 22.4 kW |
Torque | 407 Nm (500 RPM) |
Torque Gearbox | 1.356 Nm (150 RPM) |
Spindle Nose | A2-6" |
Spindle Bore | 88.9 mm |
Spindle positioning | +/- 0,01° |
Rotary Tools | |
Spindle Speed | 6.000 RPM |
Power | 3,7 kW |
Attachement | VDI40 |
Tools | |
Boring bar clearence (Back of turret) | 102 mm |
Options:
Chip Conveyor Belt type, Coolant system 21 Bar, Automatic Tool Presetter, Parts catcher, Programmable hydraulic tailstock, Visual Quick Code, Auxillary Coolant Filter Sysytem, Liner guide adapter kit for 76mm bar capacity, Rapid tapping, spindle orientation,
The technical specifications are based on information provided to Revercon BV and may differ from the reality. Revercon can not be held responsible for mistakes. In case of discrepancies Revercon will correct immediately this data.
