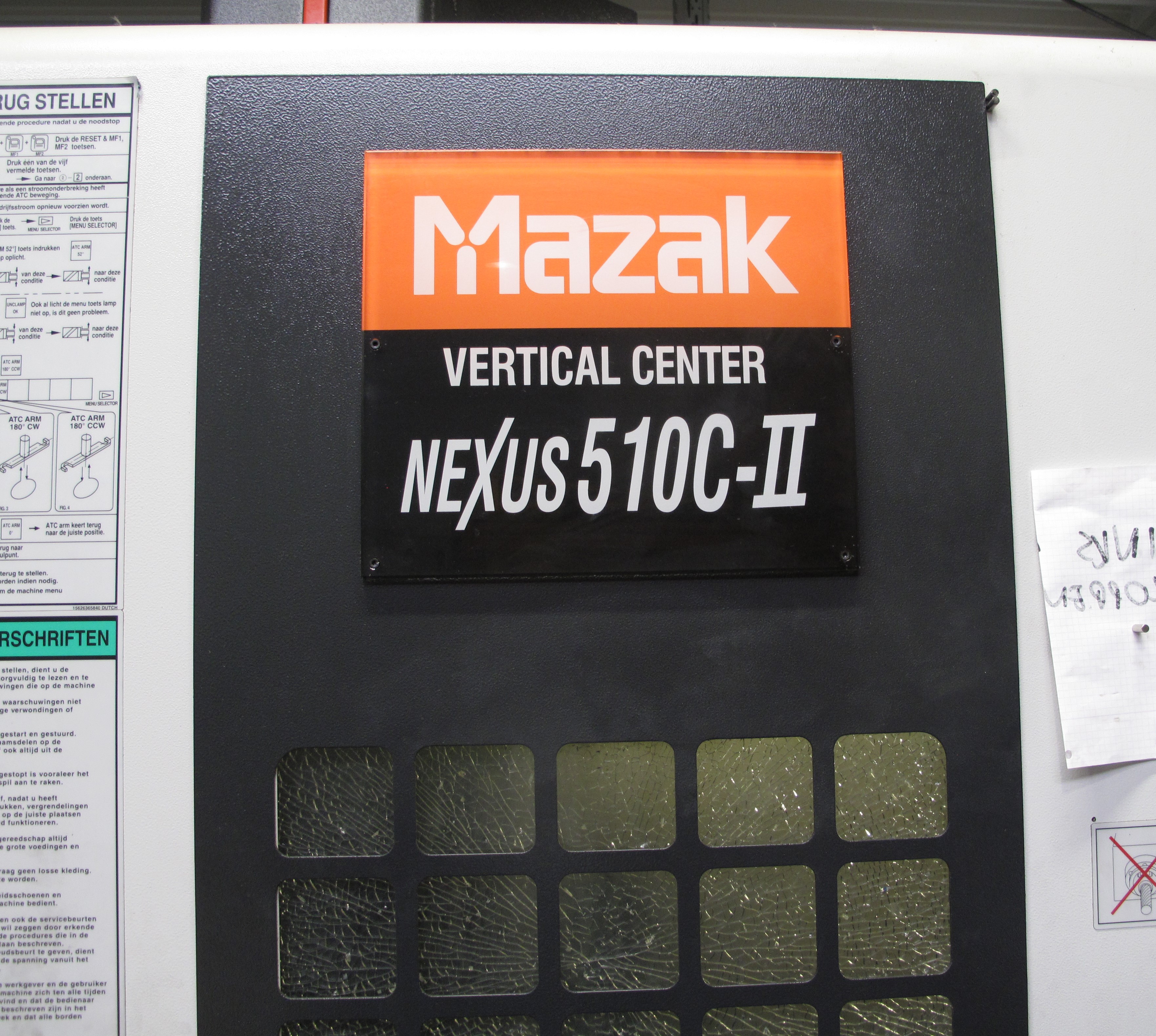

Used Mazak VCN 510C-II CNC Machine
Year Built | 2008 |
Power-on hours | 67.000 |
Spindel hours | 21.000 |
Price New | 104.000 € |
Location | Eastern Belgium |
Expected Price | Please contact us |
Work table | |
Table | 1.300 mm x 550 mm |
Max. table load | 1.200 kg |
Table slot (Nr x Dist x width) | 5 x 100 mm x 18 mm |
Tool magazine | |
Number of tools | 30 |
Max. tool dia. | 80 mm |
Free adjecent pocket | 125 mm |
Max. tool length | 350 mm |
Max. tool weight | 8 kg |
Control | |
Mazak Matrix Nexus | |
Tool measuring system |
Travel | |
X-Stroke | 1.050 mm |
Y-Stroke | 510 mm |
Z-Stroke | 510 mm |
Spindle | |
Spindle Speed | 35 - 12.000 RPM |
Tool shaft | ISO40 |
Spindle motor | 18,5 kW |
Feed | |
Rapid traverse X/Y/Z | 36 m/min |
Feed rate | 1 - 8.000 mm/min |

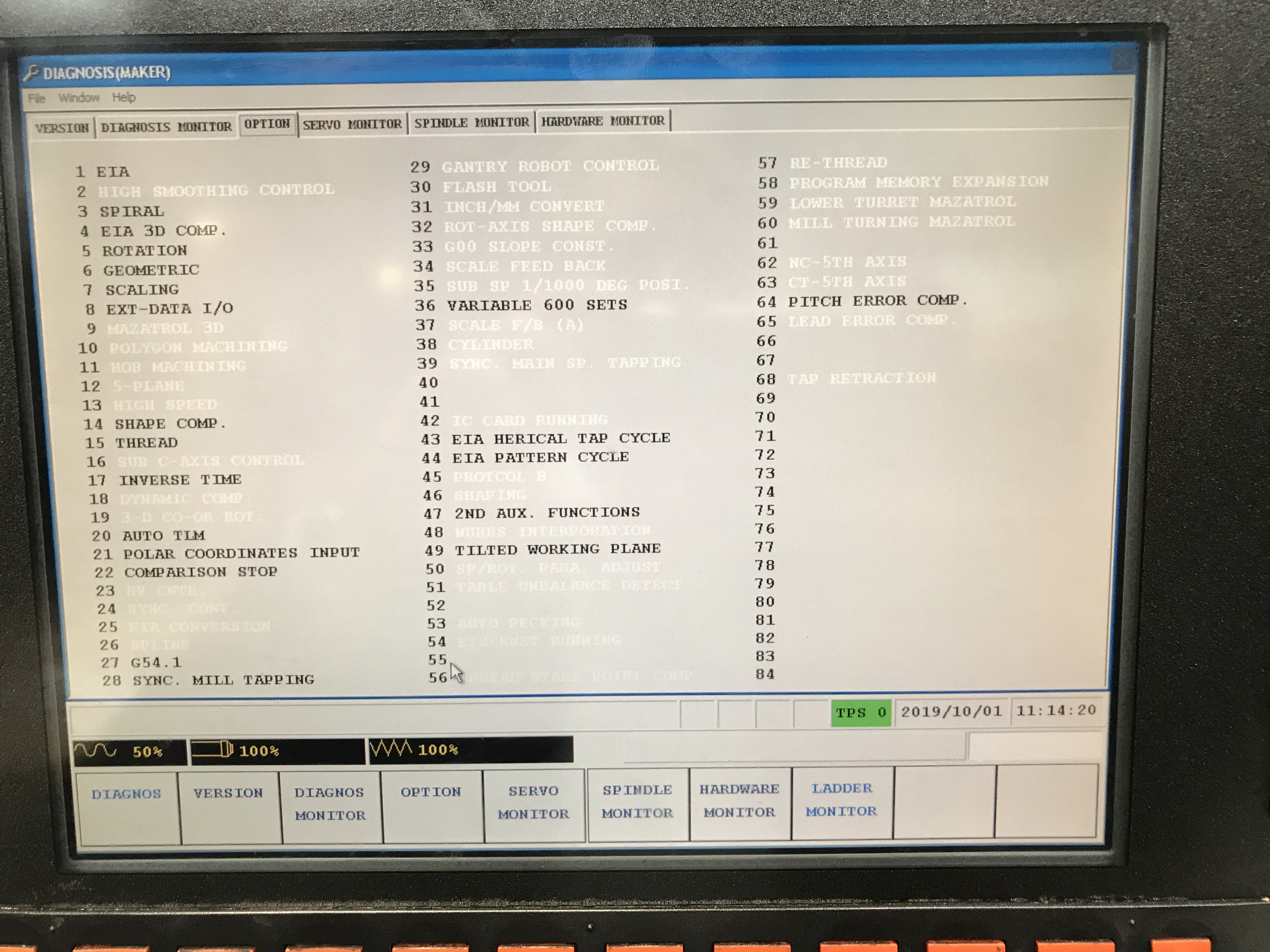

Door lock - Roof Top - Through spindle coolant - Chip conveyor Mayfran - Transformer Europe - Automatic tool measurement - Mazak Tornado Tapping & Milling - RS232C interface - Background tool check - Machining Navigation (Prediction-Monitor-Results) - PCMCIA Interface - Network interface - Automatic Feed Control (AFC) - Tool Life Management (TLM) - Working light.
The technical specifications are based on information provided to Revercon BV and may differ from the reality. Revercon can not be held responsible for mistakes. In case of discrepancies Revercon will correct immediately this data.
